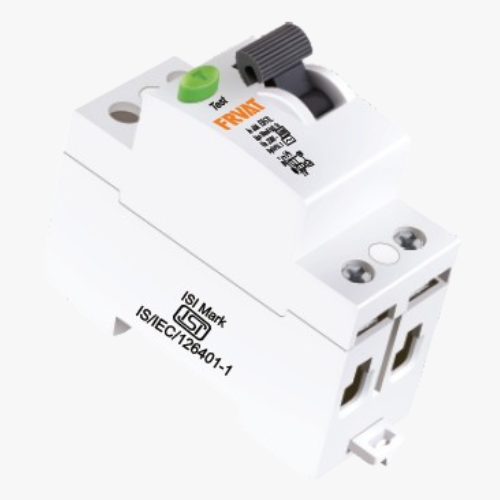

Double Pole RCCB
Residual Current Circuit Breakers (RCCBs) are safety devices that protect against electrical faults by detecting imbalances in current flow. They swiftly interrupt circuits upon detecting a fault to prevent electric shock or fire hazards. RCCBs come in various types and adhere to international safety standards, ensuring compatibility and reliability in electrical installations.
Technical Specification - Double Pole 300mA - (DP) RCCB
| Rating | MRP | Code | Outer Carton | Master Carton |
|---|---|---|---|---|
| 25A | 1890 | R0125D030 | 6 | 60 |
| 32A | 1890 | R023D030 | 6 | 60 |
| 40A | 1890 | R0340D030 | 6 | 60 |
| 63A | 2050 | R046D030 | 6 | 60 |
Technical Specification - Double Pole 100mA - (DP) RCCB
| Rating | MRP | Code | Outer Carton | Master Carton |
|---|---|---|---|---|
| 25A | 1940 | R0525D100 | 6 | 60 |
| 32A | 1940 | R0632D100 | 6 | 60 |
| 40A | 1940 | R0740D100 | 6 | 60 |
| 63A | 2100 | R0863D100 | 6 | 60 |
Technical Specification - Double Pole 30mA - (DP) RCCBB
| Rating | MRP | Code | Outer Carton | Master Carton |
|---|---|---|---|---|
| 25A | 1990 | R0925D300 | 6 | 60 |
| 32A | 1990 | R1032D300 | 6 | 60 |
| 40A | 1990 | R1140D300 | 6 | 60 |
| 63A | 2150 | R1263D300 | 6 | 60 |
Features
⮚ CE / ISI Mark as per IS/IEC 126401-1
⮚ Enhanced Safety Using High Quality Retardent Material
⮚ Operating Voltage-240V/415V AC
⮚ Frequency-50Hz
⮚ Bi-Connect Terminal
⮚ IP 20 Protection
⮚ Din Rail Clip For Easy Intallation
⮚ Long Life Due To Copper-Silver Contacts
⮚ Position Isolation Rated Conditional Short Circuit Current Inc 6ka
⮚ Position Indicator For ON/OFF Identify The Real Positions of Contacts Inside the RCCB
