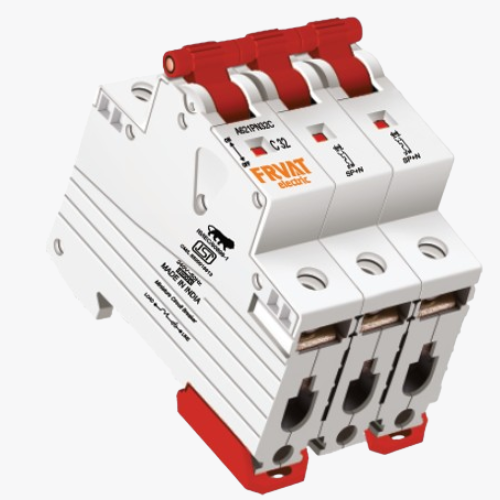

Triple Pole Isolator
An isolator is an electrical device used to physically disconnect a circuit from its power source for maintenance or repair. It features manual operation, mechanical interlocks for safety, and visual indicators to show the circuit's status. Isolators ensure safe handling of high voltages and comply with industry standards for electrical safety.
Technical Specification - Triple Pole Isolator - TPI
| Rating | MRP | Code | Outer Carton | Master Carton |
|---|---|---|---|---|
| 32A | 598 | B053PI032 | 4 | 40 |
| 40A | 598 | B063PI040 | 4 | 40 |
| 50A | 628 | B073PI050 | 4 | 40 |
| 63A | 655 | B073PI050 | 4 | 40 |
| 40A | 550 | B193P1040 | 4 | 40 |
| 50A | 550 | B203P1050 | 4 | 40 |
| 63A | 580 | B213P1063 | 4 | 40 |
| 80A | 625 | B223P1080 | 4 | 40 |
| 100A | 680 | B233P1100 | 4 | 40 |
| 125A | 750 | B243P1125 | 4 | 40 |
Features
⮚ CE / Conforms To IEC:60947-3
⮚ IP 20 Protection
⮚ Energy Saving-Low Watt Loss
⮚ Long Life Due To Copper-Silver Contacts
⮚ Large Terminal-50mm2 Cable Connection Capability
⮚ Enhanced Safety Using High Quality Retardent Material
⮚ Din Rail Clip For Easy Intallation
⮚ Operating Voltage-240V/415V AC
⮚ Frequency-50Hz
⮚ Heat Dissipating Channel For Superior Cooling
⮚ Position Indicator For ON/OFF Identity The Real Positions Of Contacts Inside The Isolator
